280 m
Scale anchored to a reviewed measurement
Uniformly scale base-to-upper-tip height to 280 m; do not widen the three-blade silhouette to the 236 m rotor-circle diameter.
Vestas V236-15.0 MW Østerild Prototype
The V236-15.0 MW prototype at DTU's Østerild test centre is shown in its complete current configuration. Its rotor is 236 m in diameter, the hub is 163 m high and the upper blade tip reaches 280 m.
Dimensions
- Height
- 280 m
- Width
- 236 m
Quick facts
- Tip height
- 280 m
- Hub height
- 163 m
- Rotor diameter
- 236 m
- Blade length
- 115.5 m
- Rated power
- 15 MW

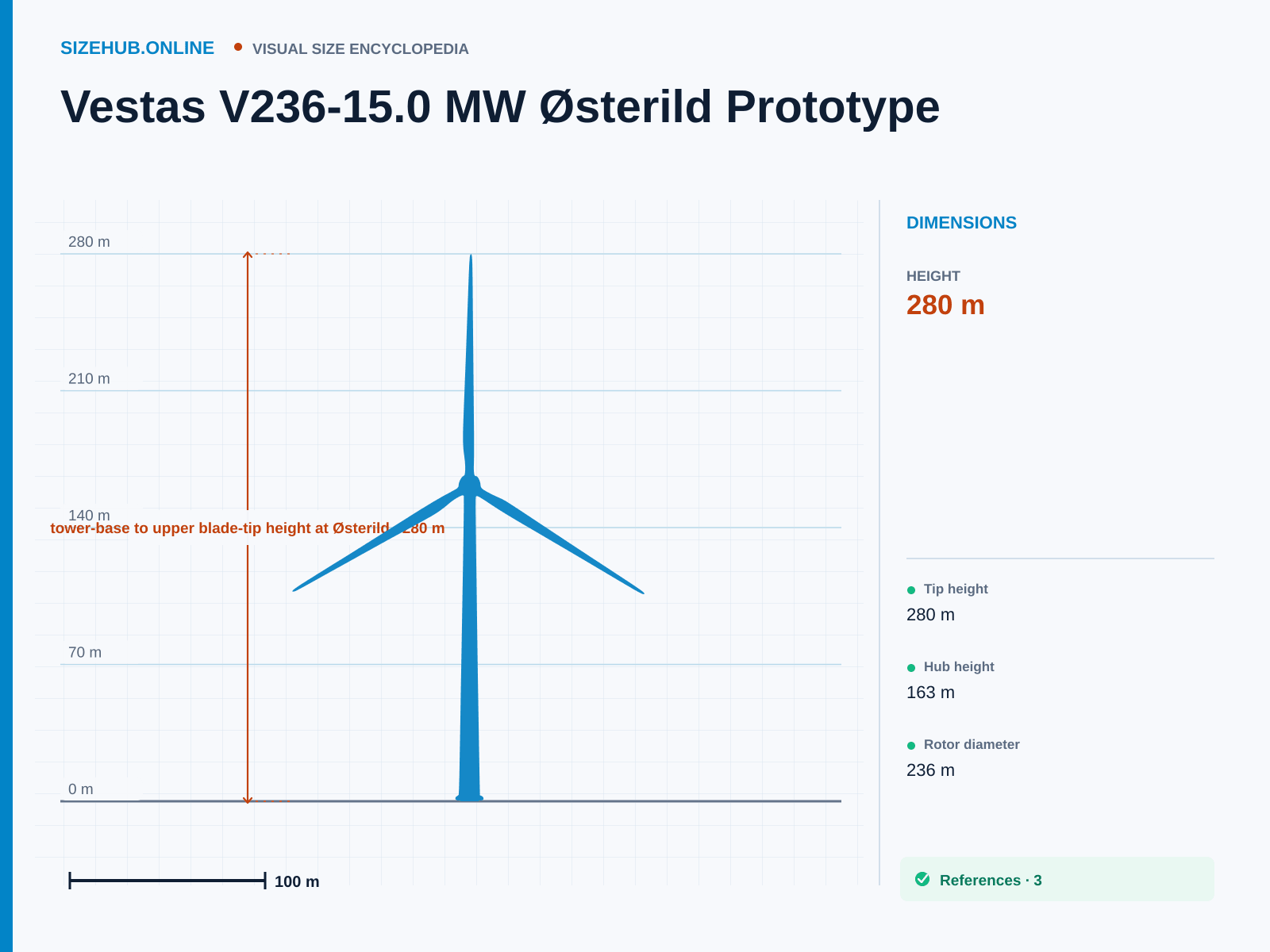

Vestas V236-15.0 MW Østerild Prototype · Size infographic
Related objects
Sources and measurement33 References
Dimensions were cross-checked against independent sources before publication.
Measurement basis
The front view is anchored from the tower base to the documented 280 m upper blade tip in a one-blade-up pose.
