Effelsberg 100-m Radio Telescope (Current)

Scale anchored to a reviewed measurement

Uniform scaling uses the documented 100 m horizontal main-reflector diameter; 87.2 m is the explicitly derived zenith-state height, while 109 m is the separate

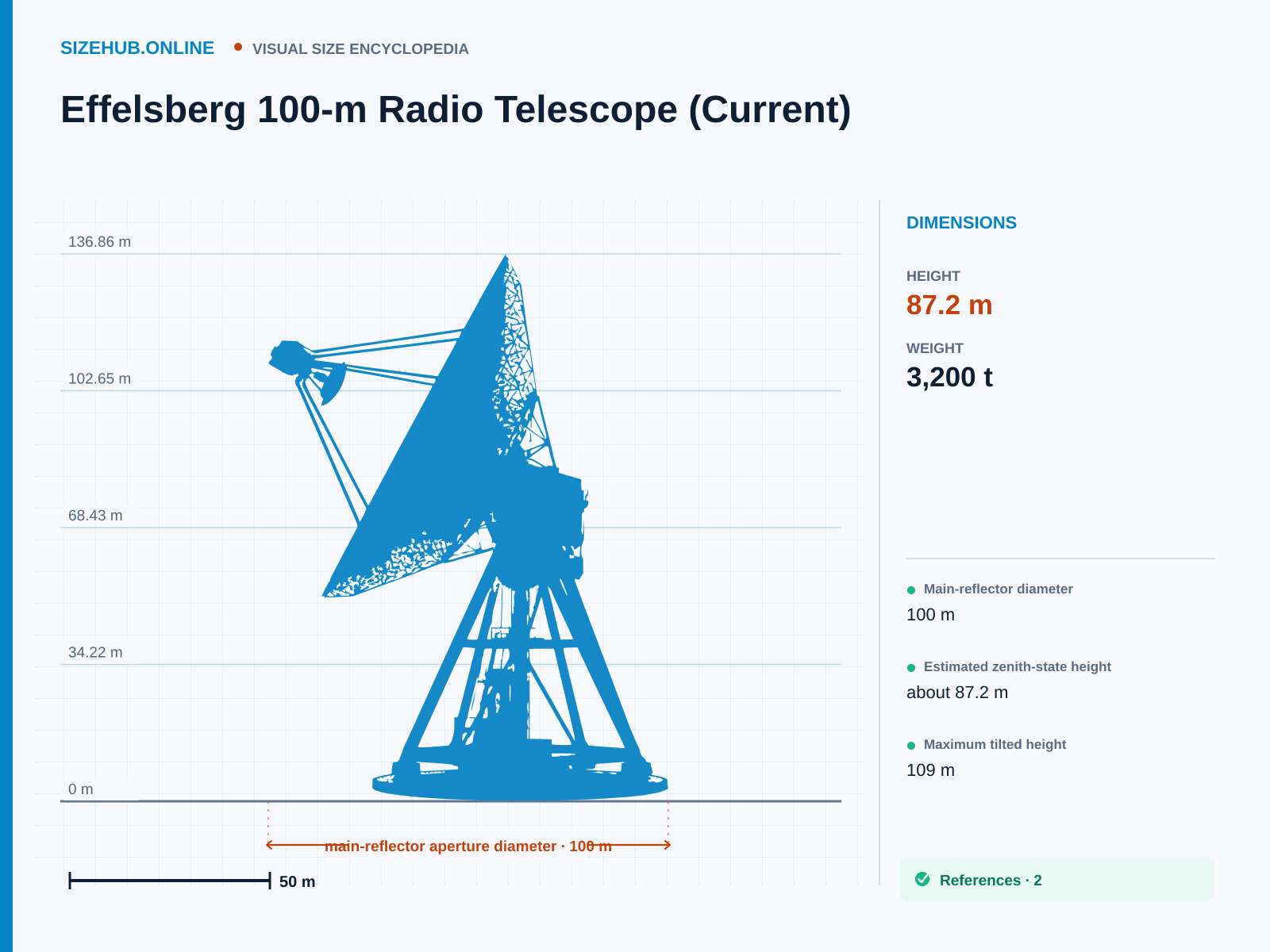

Effelsberg 100-m Radio Telescope (Current)

The present-day Effelsberg 100-m Radio Telescope is shown in a strict orthographic side elevation with its reflector in the documented 90-degree mechanical zenith reference position. Its parabolic main reflector is 100 m in diameter, and the selected pose has an explicitly derived height of about 87.2 m from the 50 m elevation-axis height, 30 m focal length and 7.2 m apex cabin. MPIfR's directly published 109 m figure is the maximum height in a tilted configuration and remains separate from this outline.

Dimensions

Height: 87.2 m
Length: 100 m
Width: 100 m
Weight: 3,200 t

Quick facts

Main-reflector diameter: 100 m
Estimated zenith-state height: about 87.2 m
Maximum tilted height: 109 m
Elevation-axis height: 50 m
Steel-structure mass: 3,200 t
