Robert C. Byrd Green Bank Telescope (Current)

Scale anchored to a reviewed measurement

Uniform scaling uses the documented 110 m horizontal physical reflector-section span; the 100 m effective aperture and 148 m total height remain visual checks a

Robert C. Byrd Green Bank Telescope (Current)

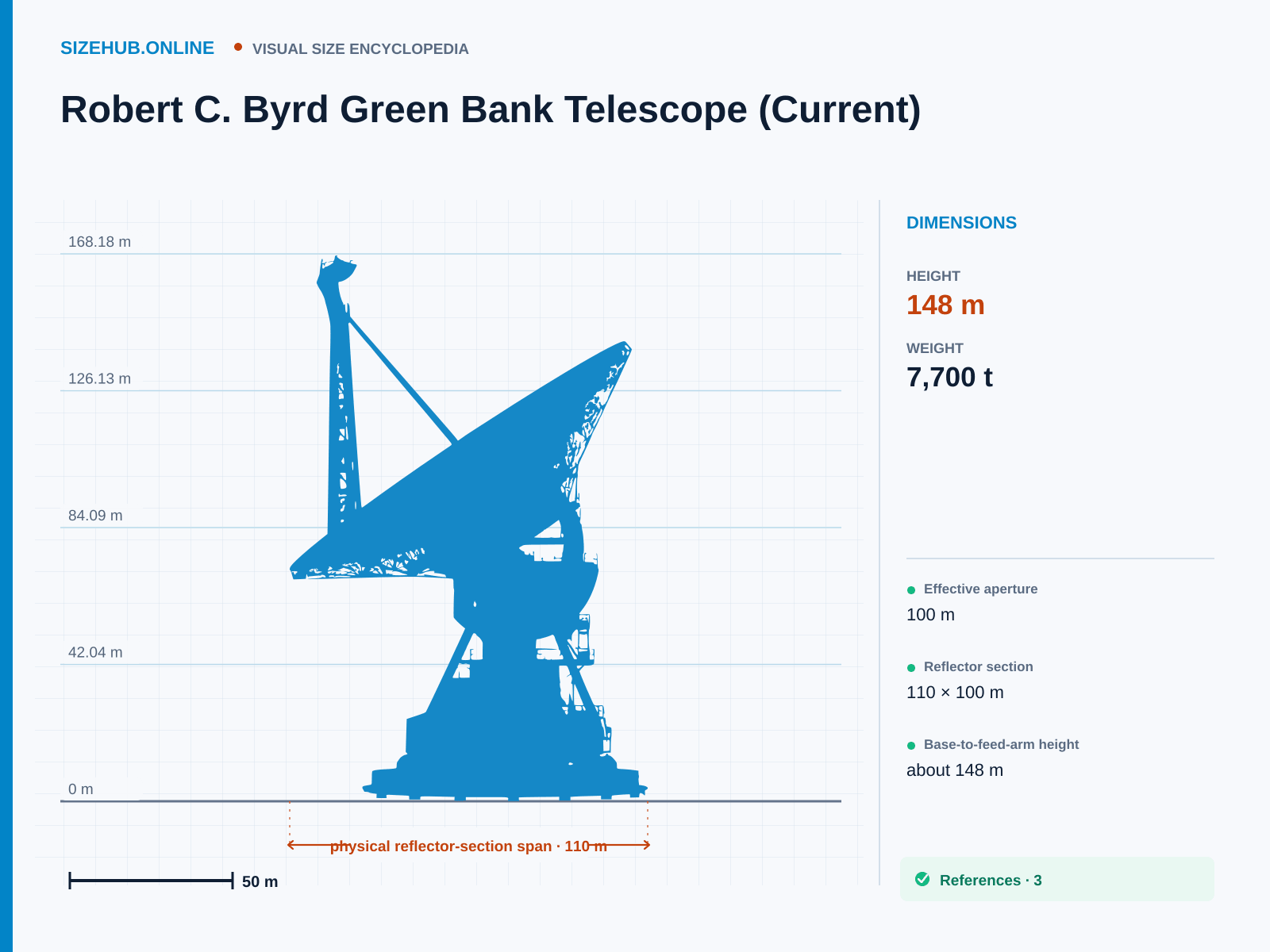

The present-day Robert C. Byrd Green Bank Telescope is shown in a strict orthographic elevation with its asymmetric reflector pointing at the zenith. Its off-axis reflector is a physical 110 m by 100 m section that provides a 100 m effective projected aperture, while the structure reaches about 148 m from its base to the top of the feed arm. The image is scaled uniformly from the documented 110 m reflector-section span rather than reshaped to fit a bounding box.

Dimensions

Height: 148 m
Length: 110 m
Width: 100 m
Weight: 7,700 t

Quick facts

Effective aperture: 100 m
Reflector section: 110 × 100 m
Base-to-feed-arm height: about 148 m
Moving mass: about 7,700 t

Compare sizes

Robert C. Byrd Green Bank Telescope (Current) · Size infographic

Related objects

Effelsberg 100-m Radio Telescope (Current)

↕ 87.2 m↔ 100 m

Dubai Frame (Current)

↕ 150.23 m↔ 20 m

Marina Bay Sands

↕ 200 m↔ 340 m

One World Trade Center

↕ 541.3 m

Sources and measurementDimensions were cross-checked against independent sources before publication.33 References

Dimensions were cross-checked against independent sources before publication.

Measurement basis

Uniform scale is anchored to the documented 110 m physical reflector-section span. The 100 m effective projected aperture and 148 m base-to-feed-arm height remain independent checks and do not deform the elevation artwork.
