IRAM 30-Meter Telescope (Current)

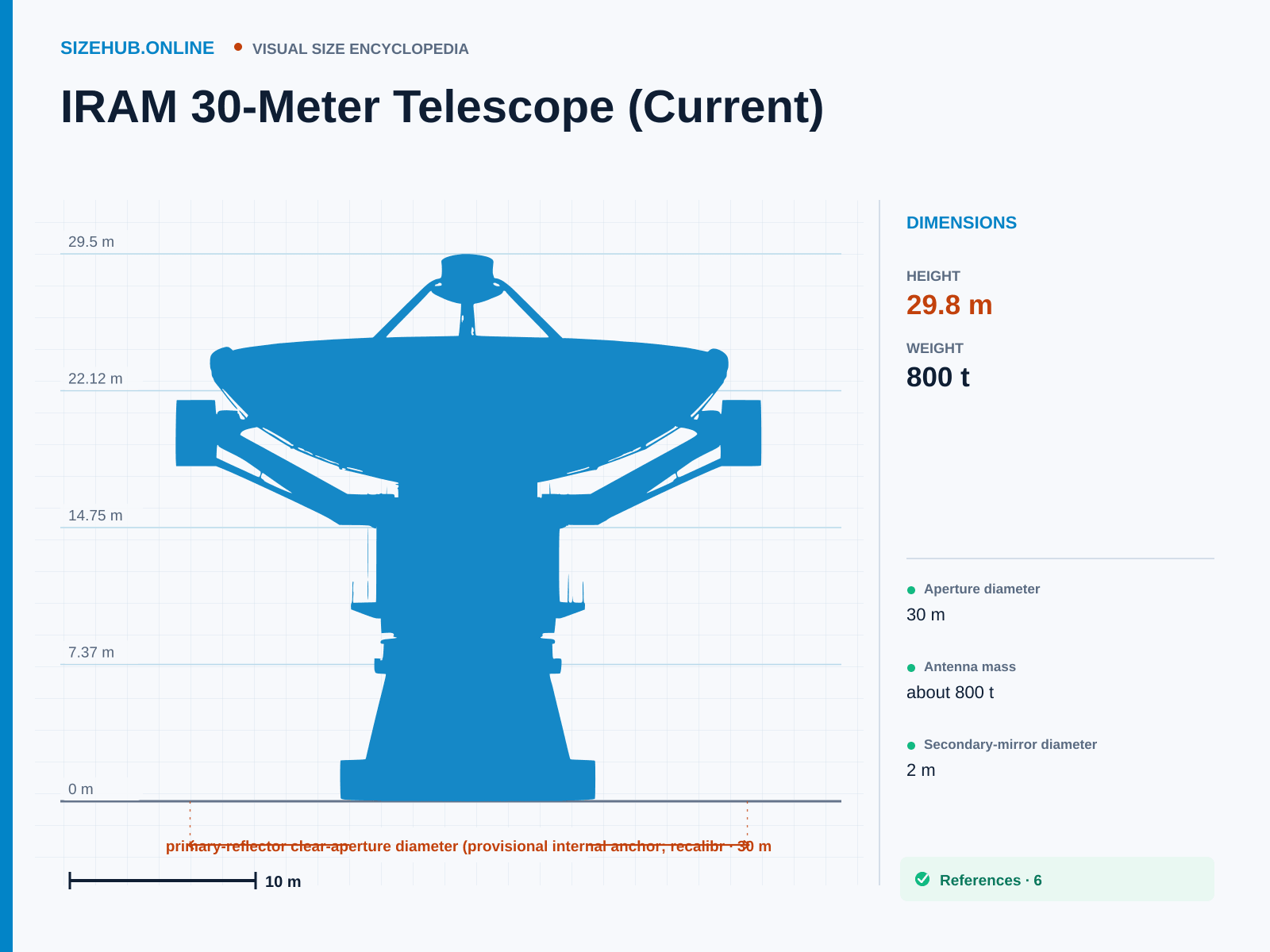

The IRAM 30-meter telescope on Pico Veleta is shown in its current appearance after the 2023–2024 drive-system renewal and primary-reflector repaint, excluding surrounding buildings and temporary infrastructure. The strict orthographic front elevation uses the documented zenith engineering configuration as a standard comparison pose. Current source tracking is limited to 88°, so the exact 90° orientation is not presented as the operational tracking limit. Uniform scale comes from the internal 30 m aperture, while the approximately 29.8 m outer height is transparently derived from IRAM's calibrated engineering cross-section.

Dimensions

Height: 29.8 m
Width: 30 m
Weight: 800 t

Quick facts

Aperture diameter: 30 m
Antenna mass: about 800 t
Secondary-mirror diameter: 2 m
Collecting area: 707 m²
Derived zenith-pose height: about 29.8 m
Current upper tracking elevation: 88°

Compare sizes

IRAM 30-Meter Telescope (Current) · Size infographic

Related objects

Effelsberg 100-m Radio Telescope (Current)

↕ 87.2 m↔ 100 m

Dubai Frame (Current)

↕ 150.23 m↔ 20 m

Marina Bay Sands

↕ 200 m↔ 340 m

One World Trade Center

↕ 541.3 m

Sources and measurementDimensions were cross-checked against independent sources before publication.66 References

Dimensions were cross-checked against independent sources before publication.

Measurement basis
