TGV INOUI Duplex 10-Car Trainset (Current)

4 m

TGV INOUI Duplex 10-Car Trainset (Current) — front

front

Proportions require correction

This legacy projection has not passed two-axis verification.

TGV INOUI Duplex 10-Car Trainset (Current)

The current double-deck TGV INOUI Duplex is represented in its standard formation of two power cars and eight articulated trailers, wearing the present INOUI white-grey livery with red accents. Its documented envelope is 200.19 m long, 2.896 m wide and 4.0 m high, with an empty mass of about 380 t.

Dimensions

Height: 4 m
Length: 200.19 m
Width: 2.9 m
Weight: 380 t

Quick facts

Length: 200.19 m
Formation: 2 power cars + 8 trailers
Width: 2.896 m
Height: 4 m
Empty mass: 380 t
Maximum speed: 320 km/h

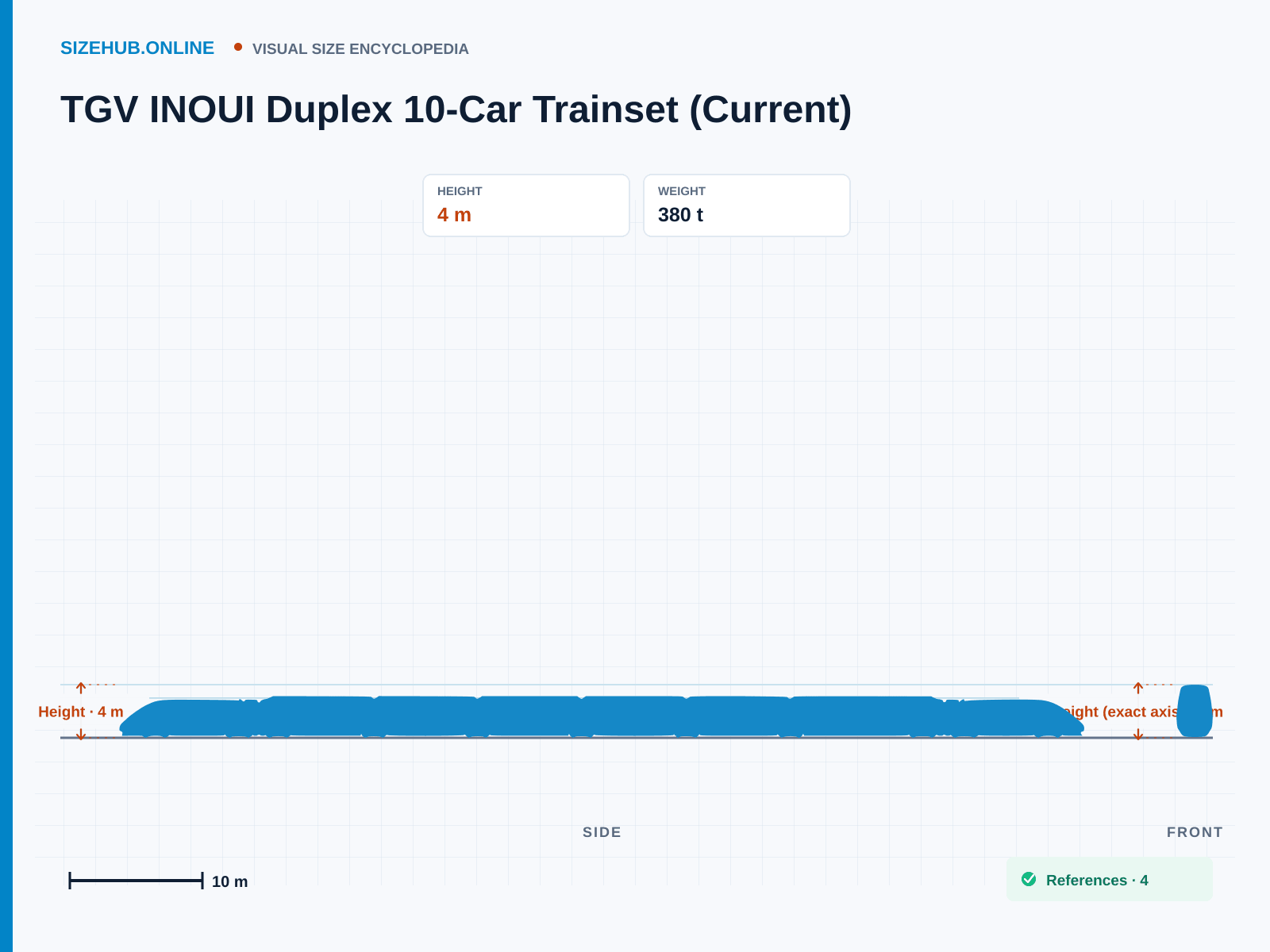

TGV INOUI Duplex 10-Car Trainset (Current) · Size infographic

TGV INOUI Duplex 10-Car Trainset (Current): Size infographic · Height 4 m · Length 200.19 m · Width 2.9 m

Related objects

AEC Routemaster RM (1958–1965)

↕ 4.38 m↔ 8.38 m

Airbus A350-1000

↕ 17.08 m↔ 73.78 m

Airbus A380-800

↕ 24.1 m↔ 72.7 m

Airbus A400M Atlas

↕ 14.7 m↔ 45.1 m

Sources and measurementDimensions were cross-checked against independent sources before publication.44 References

Dimensions were cross-checked against independent sources before publication.

Measurement basis

The established Duplex geometry is used; the separate TGV M platform is excluded.
