Sikorsky CH-53K King Stallion
The Sikorsky CH-53K King Stallion is a three-engine heavy-lift helicopter operated by the U.S. Marine Corps with a seven-blade main rotor. It is shown parked in fully unfolded operating configuration, with rotors stopped, tail extended and no sling load. The dimensions describe the unfolded aircraft rather than its compact shipboard fold.
Dimensions
- Height
- 8.64 m
- Length
- 30.19 m
- Width
- 24.08 m
Quick facts
- Length
- 30.19 m
- Height
- 8.64 m
- Main rotor diameter
- 24.08 m
- Maximum weight with external load
- 39,916 kg
- Main rotor blades
- 7

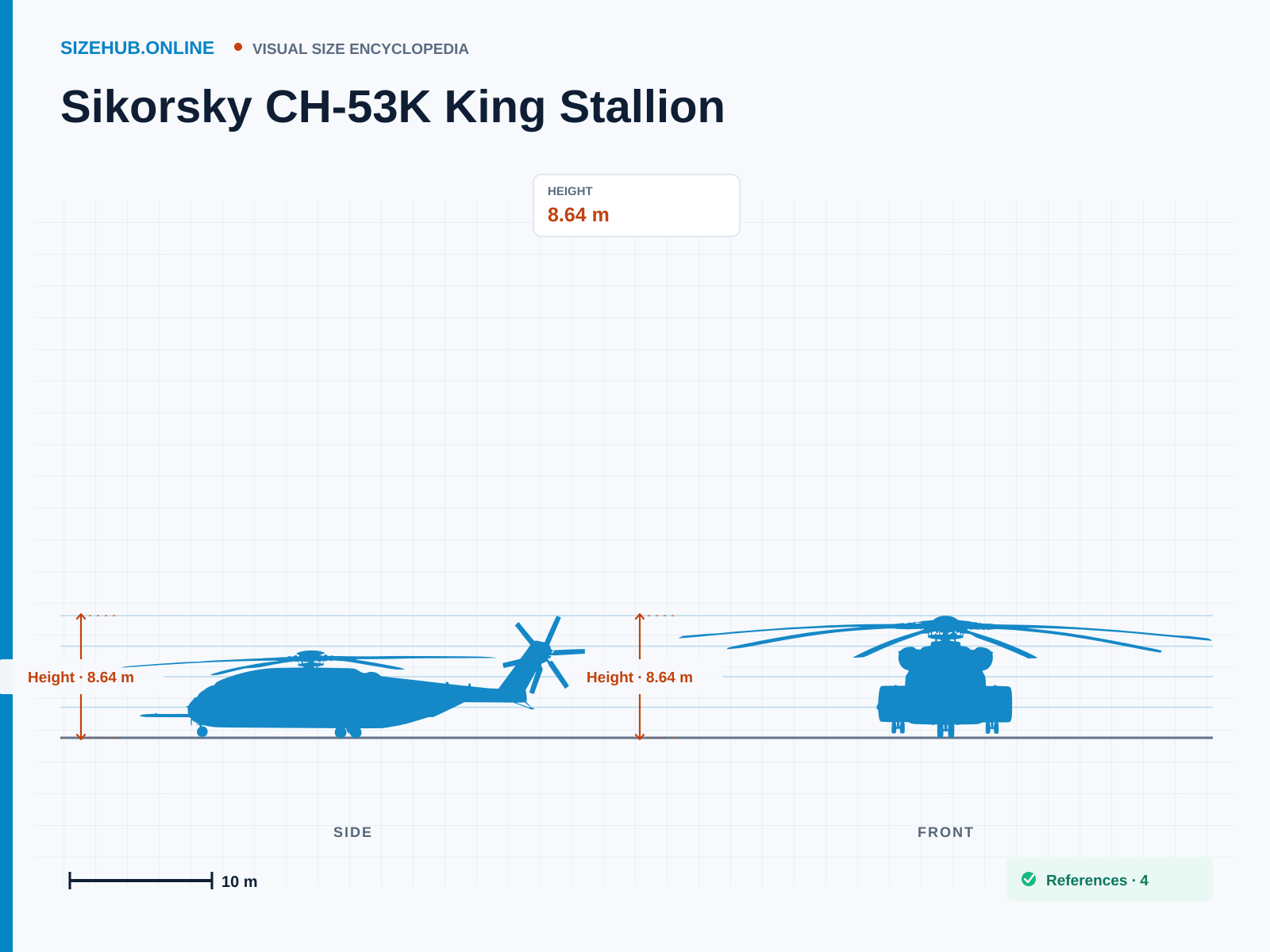

Sikorsky CH-53K King Stallion · Size infographic
Related objects
Sources and measurement44 References
Dimensions were cross-checked against independent sources before publication.
Measurement basis
The side contour follows 30.188 m by 8.636 m in unfolded operating form; the front contour follows 24.079 m by 8.636 m. Folded shipboard form is excluded.
