Robinson R44 Raven II
The Robinson R44 Raven II is a four-seat piston helicopter with a two-blade main rotor and skid landing gear. It is represented in its standard land configuration, parked with both rotors stopped and fully unfolded. Floats, camera mounts, cargo hooks and other optional equipment are excluded.
Dimensions
- Height
- 3.28 m
- Length
- 11.66 m
- Width
- 10.06 m
- Weight
- 683 kg
Quick facts
- Length
- 11.66 m
- Height
- 3.28 m
- Main rotor diameter
- 10.06 m
- Approx. empty weight
- 683 kg
- Seats
- 4
Robinson R44 Raven II · Size infographic
Related objects
Sources and measurement33 References
Dimensions were cross-checked against independent sources before publication.
Measurement basis

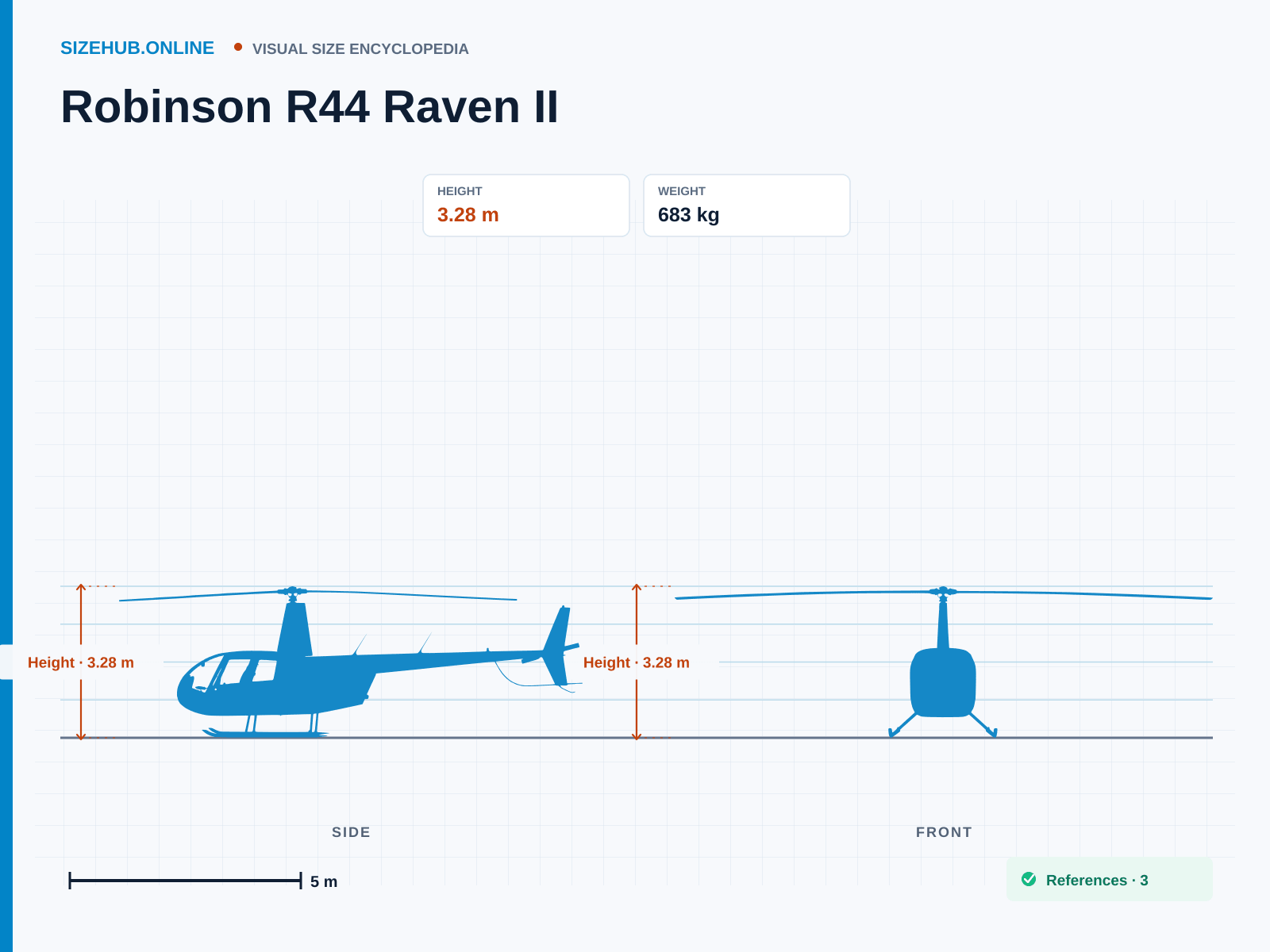

The side view uses the 11.66 m by 3.28 m operating envelope with blades aligned fore-aft; the front view uses the 10.06 m rotor diameter by the same 3.28 m height.
