105.3 m
Scale anchored to a reviewed measurement
Uniform scaling uses one documented measurement; the visual contour is never deformed to fit a second axis.
N1 Rocket No. 3L (1969)
The Soviet N1 No. 3L is shown in its first-flight configuration of 21 February 1969 with the L3 lunar payload nose assembly. Its complete height was 105.3 m and the first-stage base reached about 16.8 m in diameter.
Dimensions
- Height
- 105.3 m
- Length
- 16.8 m
- Width
- 16.8 m
- Weight
- 2,750 t
Quick facts
- Height
- 105.3 m
- Maximum diameter
- 16.8 m
- Launch mass
- about 2,750,000 kg
- First launch
- 21 February 1969

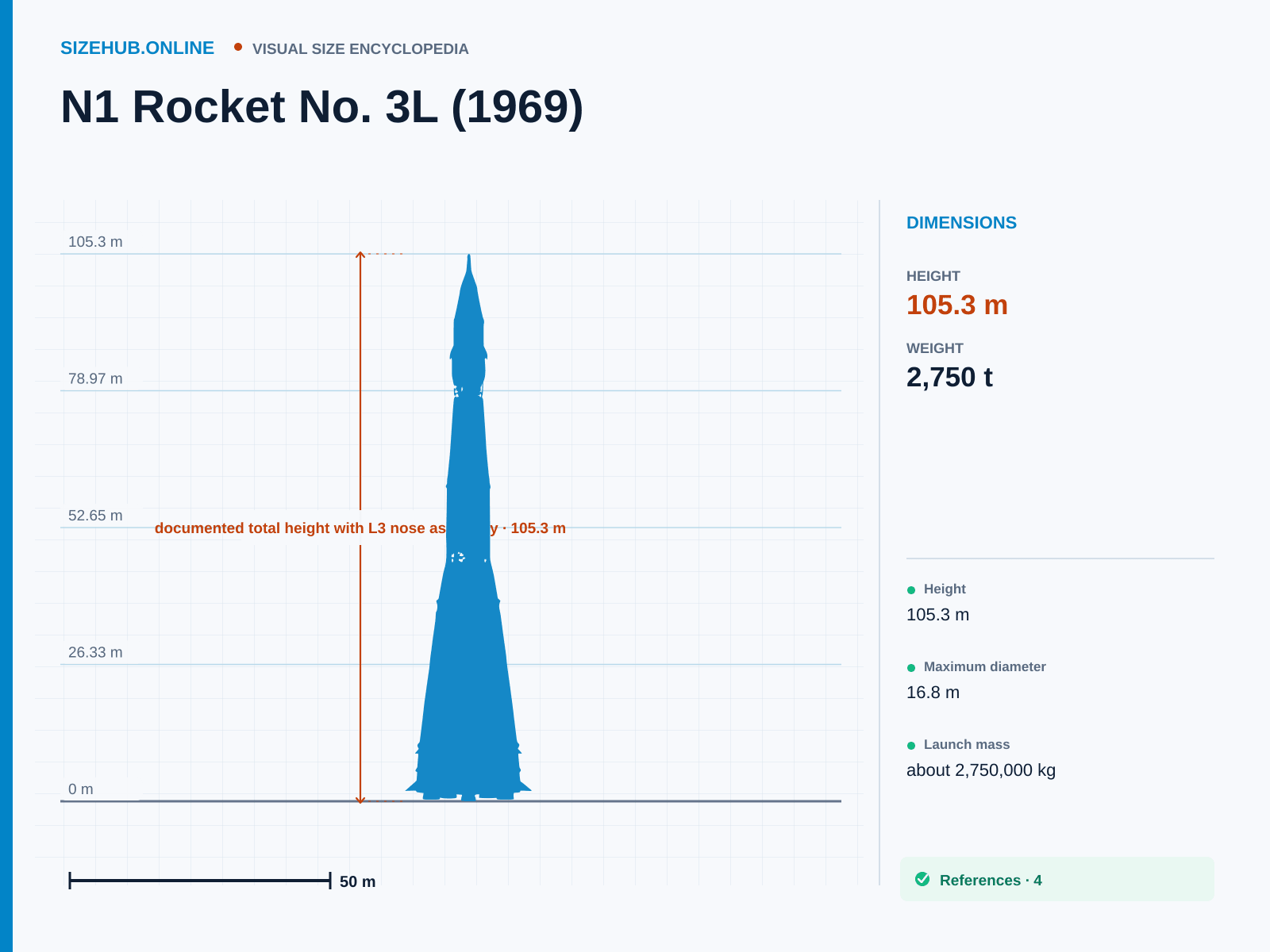

N1 Rocket No. 3L (1969) · Size infographic
Related objects
Sources and measurement44 References
Dimensions were cross-checked against independent sources before publication.
Measurement basis
The total height includes the L3 nose assembly; maximum diameter refers to the broad first-stage base.
