10.96 m
Liebherr R 9800 Backhoe
Scale anchored to a reviewed measurement
Uniformly scaled by the marked segment.

Liebherr R 9800 Backhoe

Current R 9800 Generation 6 backhoe in a low neutral pose, with a documented 25.53 m by 10.96 m envelope. Generation 6 backhoe with 11.75 m mono boom in the documented low envelope.

Dimensions

Height
10.96 m
Length
25.53 m
Width
10.3 m
Weight
800 t

Quick facts

Operating mass
800 t
Length
25.53 m
Bucket capacity
47.5 m³
Compare sizes

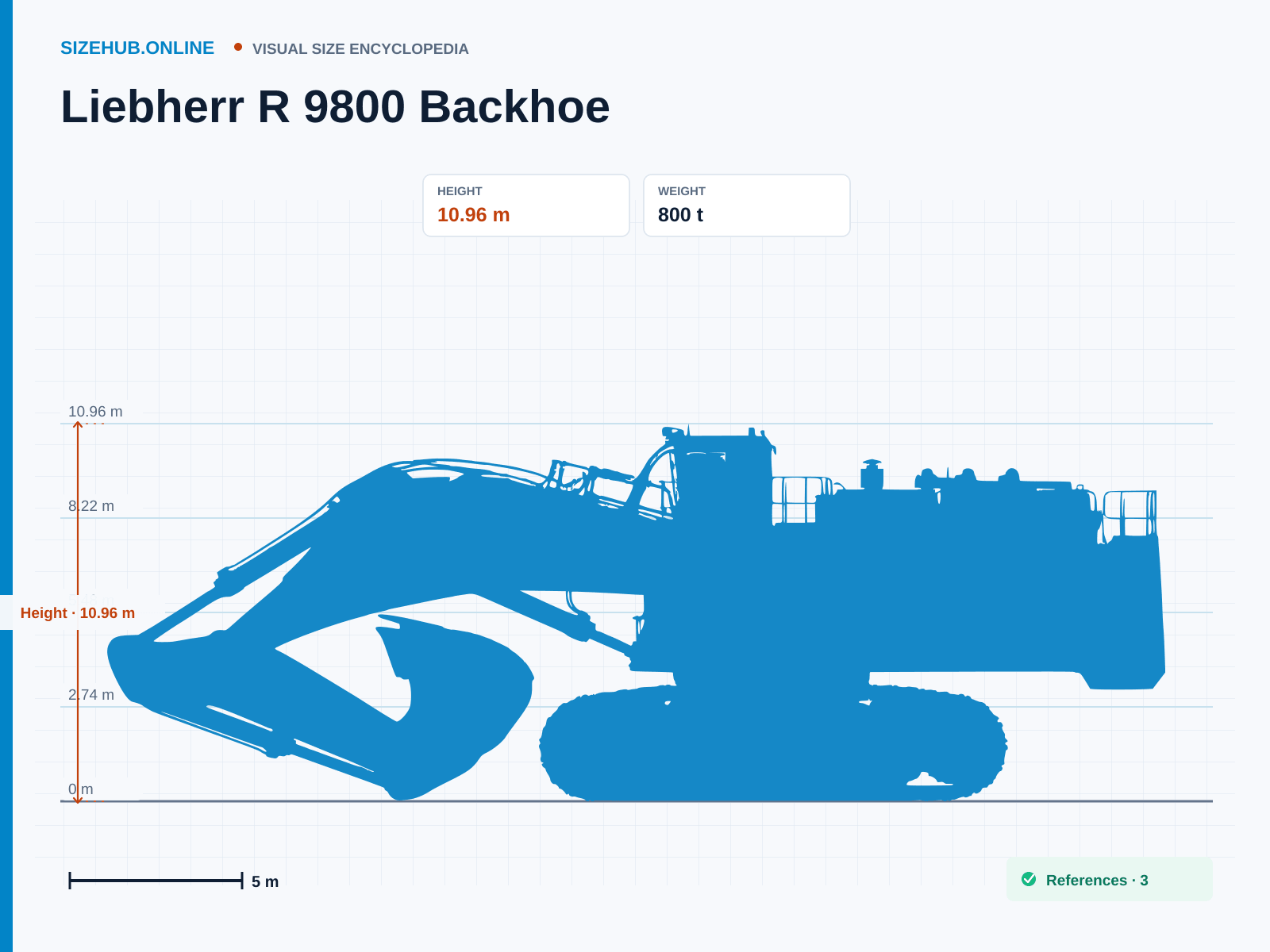

Liebherr R 9800 Backhoe · Size infographic

Liebherr R 9800 Backhoe: Size infographic · Height 10.96 m · Length 25.53 m · Width 10.3 m
Liebherr R 9800 Backhoe: Size infographic · Height 10.96 m · Length 25.53 m · Width 10.3 m

Related objects

AEC Routemaster RM (1958–1965)
↕ 4.38 m↔ 8.38 m
Airbus A350-1000
↕ 17.08 m↔ 73.78 m
Airbus A380-800
↕ 24.1 m↔ 72.7 m
Airbus A400M Atlas
↕ 14.7 m↔ 45.1 m
Sources and measurement3

Dimensions were cross-checked against independent sources before publication.

Measurement basis

Generation 6 backhoe with 11.75 m mono boom in the documented low envelope.

References

  1. 01R 9800 Generation 6 mining excavator brochureLiebherr
  2. 02Dimensions — Liebherr R 9800 User ManualManualsDir
  3. 03Commissioning of second Liebherr R 9800 excavator for AMMANInternational Mining
