Scale anchored to a reviewed measurement
Uniform scale uses documented machine height; installed-header side length remains natural and is not claimed.
John Deere X9 1100 with HD50R Header
The John Deere X9 1100 is shown with its compatible 50-foot HD50R draper header installed, the grain tank closed and the unloading auger folded. The front comparison uses the documented 15.3 m cutterbar span and 4.10 m machine height; the side is scaled from height only.
Dimensions
- Height
- 4.1 m
- Width
- 15.3 m
Quick facts
- Maximum power
- 690 hp
- Header span
- 15.3 m
- Grain tank
- 16,210 L
- Unload rate
- 186 L/s

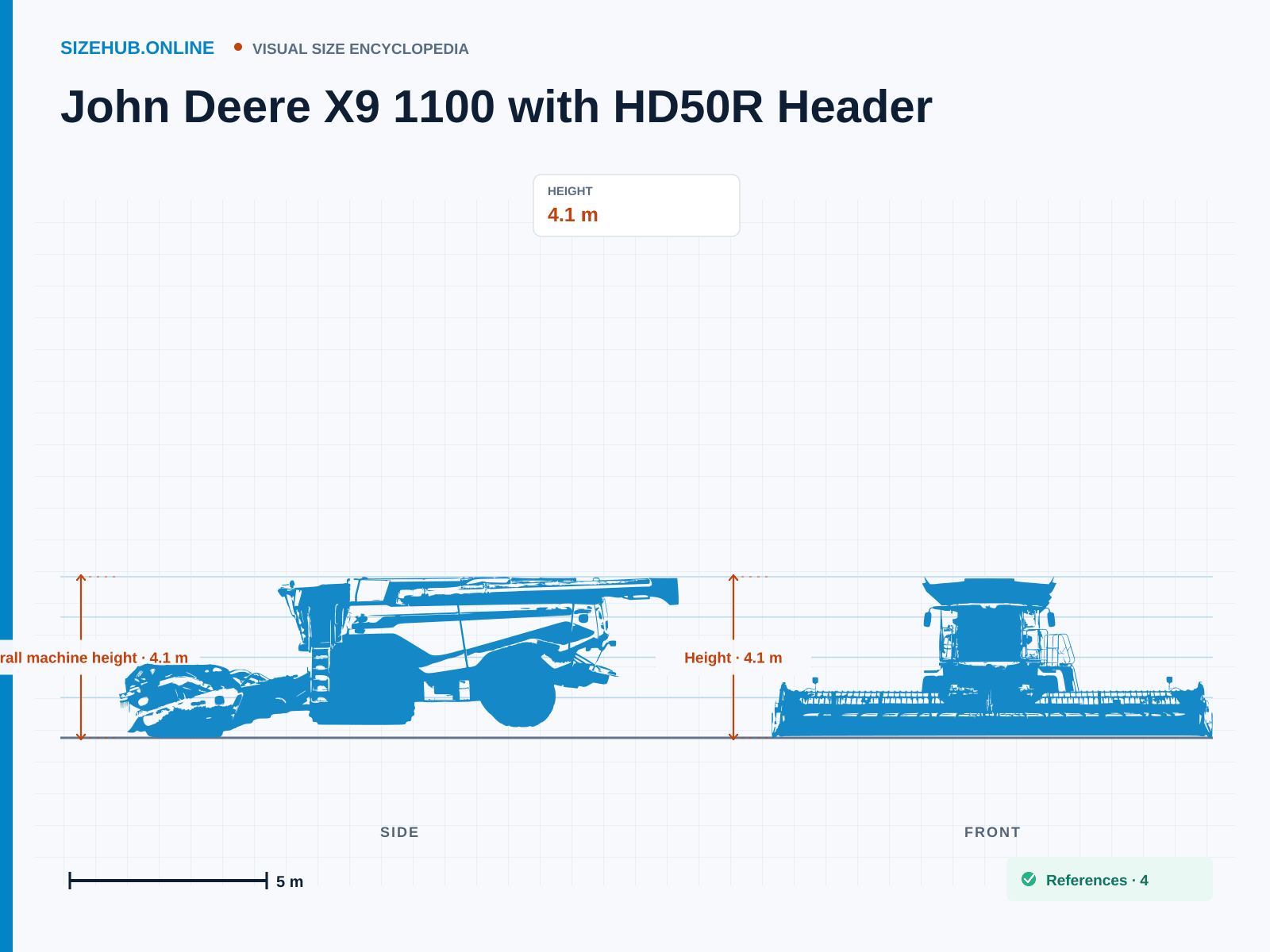

John Deere X9 1100 with HD50R Header · Size infographic
Related objects
Sources and measurement44 References
Dimensions were cross-checked against independent sources before publication.
Measurement basis
The front view uses two documented visible axes; the side view retains natural installed-header proportions and is uniformly anchored to the documented 4.10 m height.
