3.78 m

John Deere 9RX 830

3.78 m

John Deere 9RX 830 — front

front

Proportions require correction

This legacy projection has not passed two-axis verification.

John Deere 9RX 830

The John Deere 9RX 830 is represented as a current articulated four-track tractor with no implement attached, using the documented 88-inch tread and 30-inch track transport configuration. Its selected coherent envelope is 8.829 m long, 2.997 m wide and 3.7845 m high.

Dimensions

Height: 3.78 m
Length: 8.83 m
Width: 3 m
Weight: 33.57 t

Quick facts

Power: 830 hp
Length: 8.829 m
Height: 3.785 m
Base weight: 33,566 kg

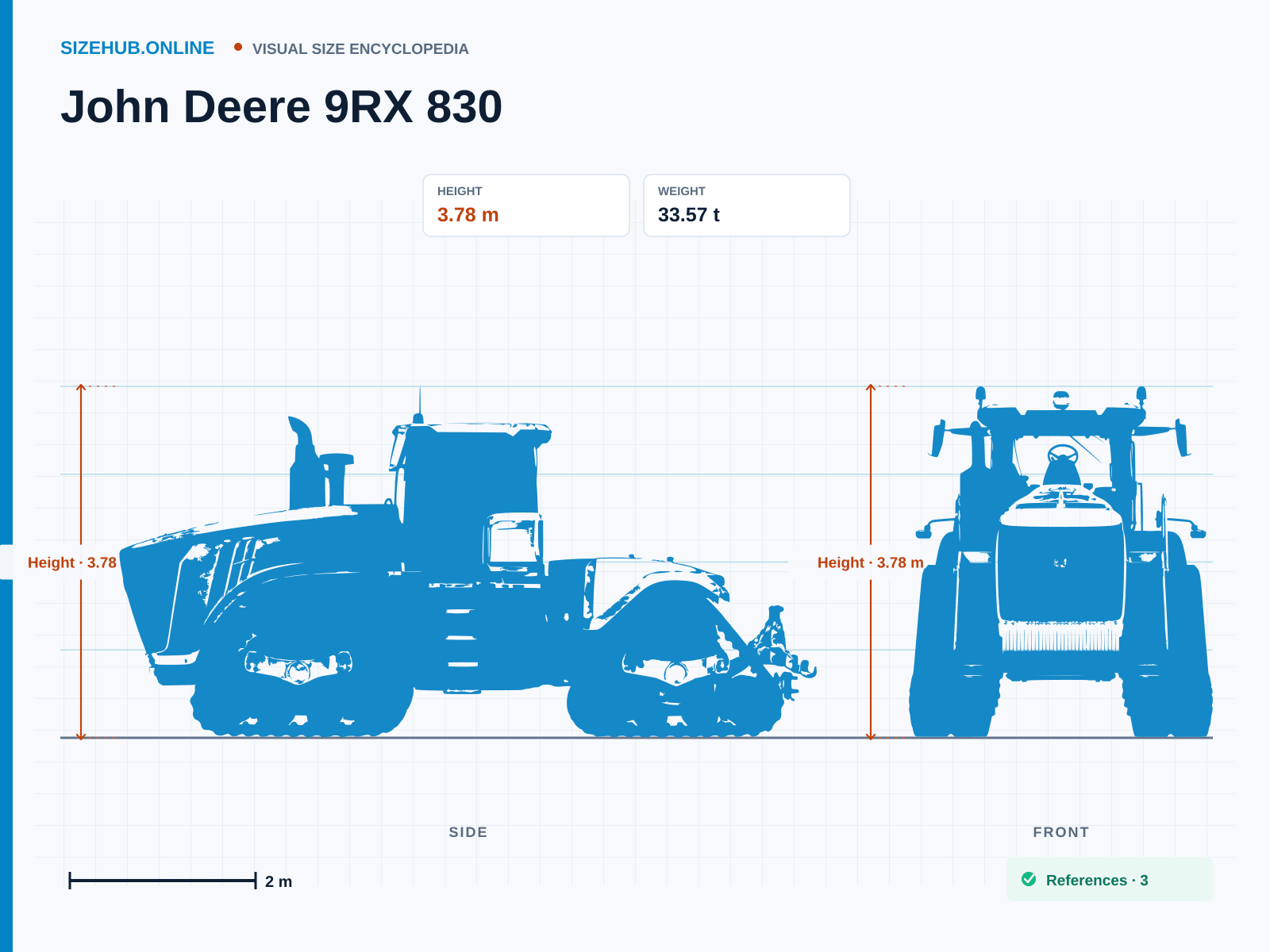

John Deere 9RX 830 · Size infographic

John Deere 9RX 830: Size infographic · Height 3.78 m · Length 8.83 m · Width 3 m

Related objects

AEC Routemaster RM (1958–1965)

↕ 4.38 m↔ 8.38 m

Airbus A350-1000

↕ 17.08 m↔ 73.78 m

Airbus A380-800

↕ 24.1 m↔ 72.7 m

Airbus A400M Atlas

↕ 14.7 m↔ 45.1 m

Sources and measurementDimensions were cross-checked against independent sources before publication.33 References

Dimensions were cross-checked against independent sources before publication.

Measurement basis

Both orthographic views preserve the same documented no-implement transport configuration and use exact visible axes without non-uniform stretching.
