GE GE9X-105B1A Engine

3.4 m

Scale anchored to a reviewed measurement

Calibrate the internal fan circle to 3.4036 m and preserve the natural outer-casing margin.

GE GE9X-105B1A Engine

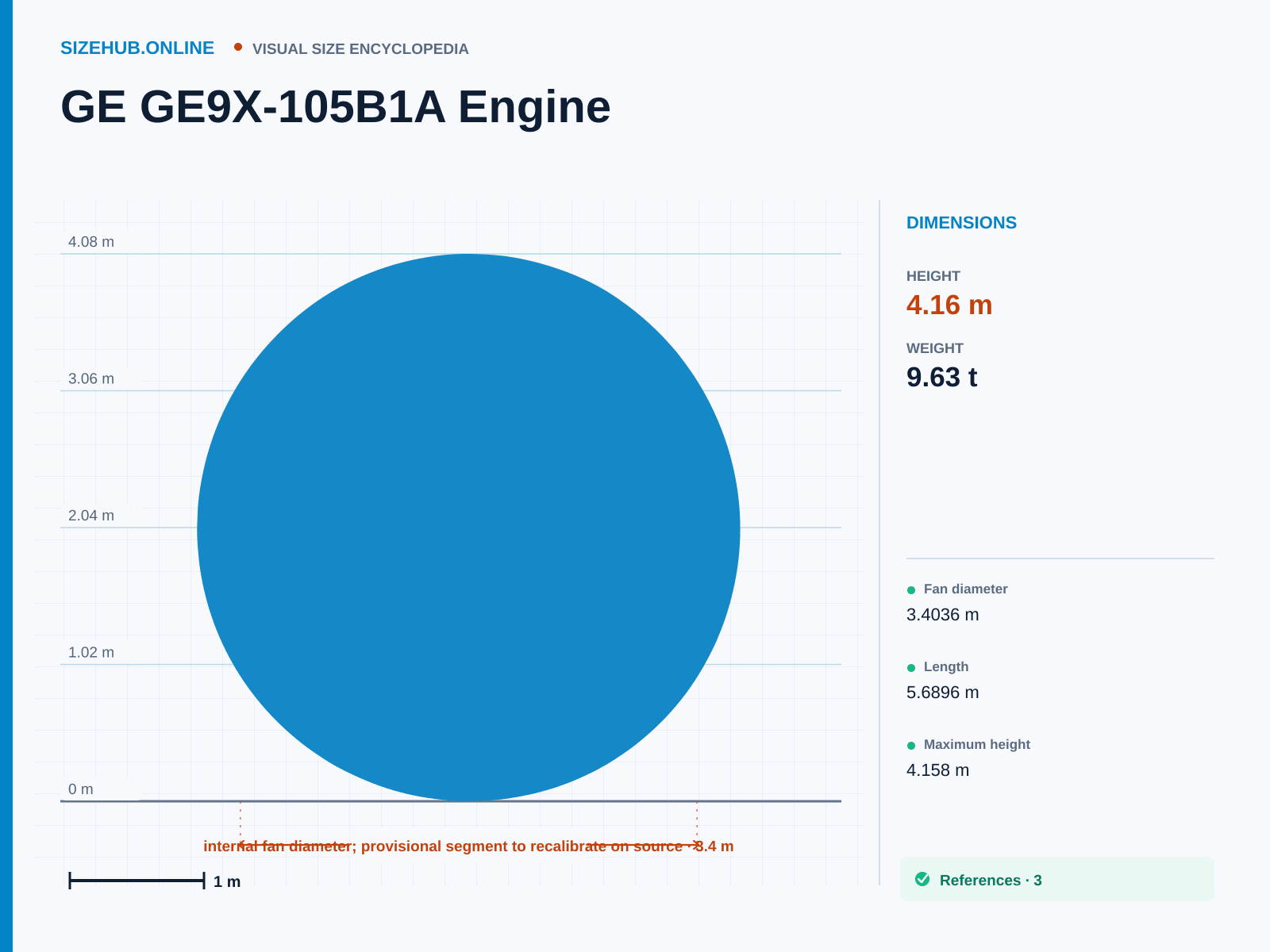

GE GE9X-105B1A Engine is presented in a strict orthographic front elevation for a clear visual size comparison. The verified reference uses a height of 4.2 m, length of 5.7 m, width of 4.1 m and weight of 9,629.8 kg. The artwork is uniformly scaled from the documented measurement contract, while its natural or architectural proportions remain unchanged. Source claims and measurement notes explain exactly which model, specimen, state or representative range is shown.

Dimensions

Height: 4.16 m
Length: 5.69 m
Width: 4.1 m
Weight: 9.63 t

Quick facts

Fan diameter: 3.4036 m
Length: 5.6896 m
Maximum height: 4.158 m
Dry weight: about 9.63 t
Variant: GE9X-105B1A

GE GE9X-105B1A Engine · Size infographic

GE GE9X-105B1A Engine: Size infographic · Height 4.16 m · Length 5.69 m · Width 4.1 m

Related objects

AEC Routemaster RM (1958–1965)

↕ 4.38 m↔ 8.38 m

Airbus A350-1000

↕ 17.08 m↔ 73.78 m

Airbus A380-800

↕ 24.1 m↔ 72.7 m

Airbus A400M Atlas

↕ 14.7 m↔ 45.1 m

Sources and measurementDimensions were cross-checked against independent sources before publication.33 References

Dimensions were cross-checked against independent sources before publication.

Measurement basis

The front view is anchored to the verified 134-inch fan circle; the larger outer casing keeps its natural proportions.
