Scale anchored to a reviewed measurement
Uniform scaling uses one documented measurement; the visual contour is never deformed to fit a second axis.
GE ES44AC (2002–2019)

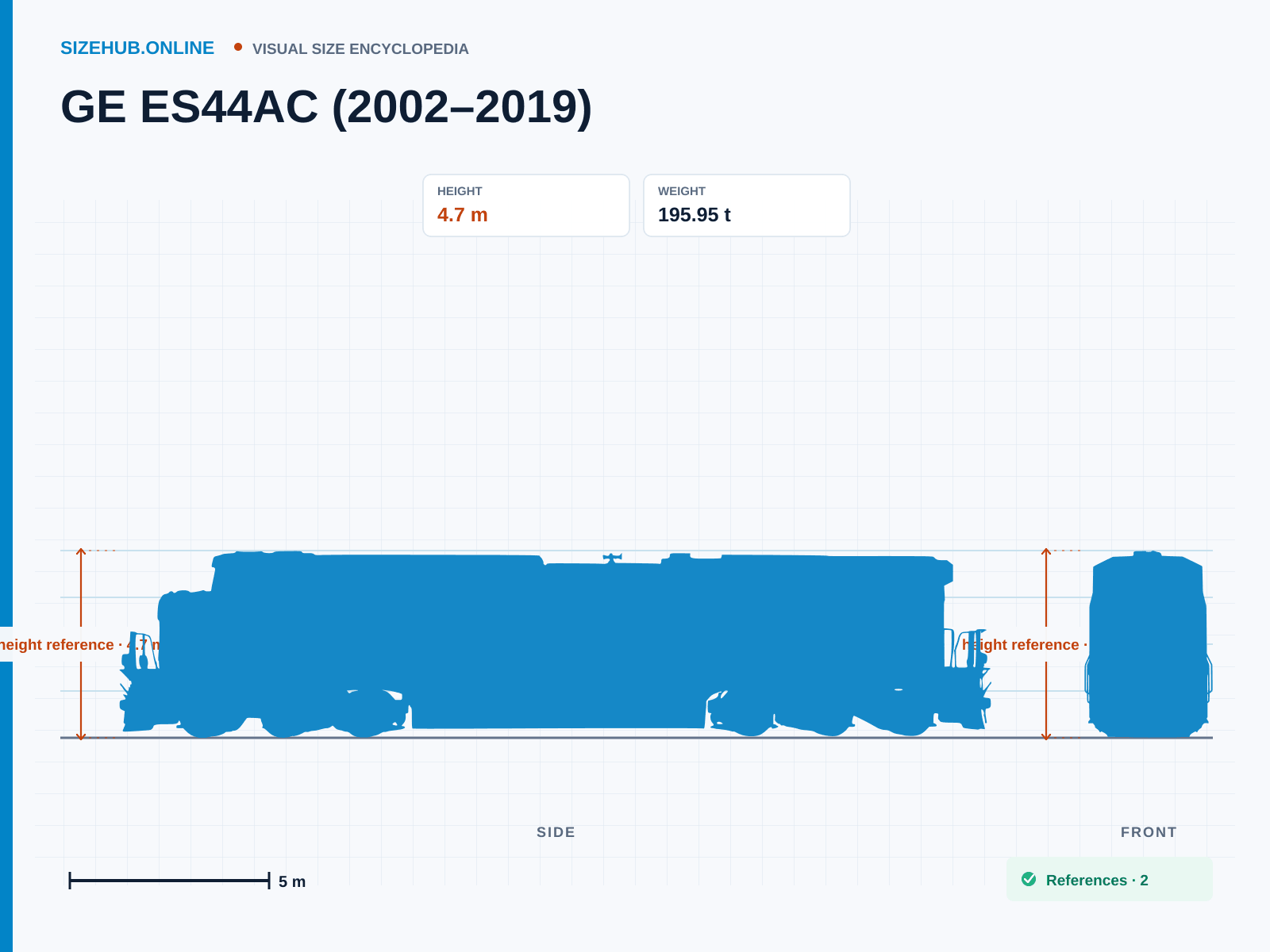

GE ES44AC 2002-2019 is presented in a strict left-facing orthographic side profile for a clear visual size comparison. The verified reference uses a height of 4.7 m, length of 22.3 m, width of 3 m and weight of 195,954 kg. The artwork is uniformly scaled from the documented measurement contract, while its natural or architectural proportions remain unchanged. Source claims and measurement notes explain exactly which model, specimen, state or representative range is shown.
Dimensions
- Height
- 4.7 m
- Length
- 22.3 m
- Width
- 3.02 m
- Weight
- 195.95 t
Quick facts
- Production period
- 2002–2019
- Length
- 22.301 m
- Width
- 3.023 m
- Height to cab roof
- 4.699 m
GE ES44AC (2002–2019) · Size infographic
Related objects
Sources and measurement22 References
Dimensions were cross-checked against independent sources before publication.
Measurement basis
Dimensions convert 73 ft 2 in by 9 ft 11 in by 15 ft 5 in. Height is from top of rail to top of cab.
