3.68 m
7 m
Scale anchored to a reviewed measurement
Uniform scaling uses one documented measurement; the visual contour is never deformed to fit a second axis.
DSV Alvin — 6500 m Configuration
DSV Alvin — 6500 m Configuration is presented in a strict left-facing orthographic side profile for a clear visual size comparison. The verified reference uses a height of 3.7 m, length of 7 m, width of 2.6 m and weight of 20,000 kg. The artwork is uniformly scaled from the documented measurement contract, while its natural or architectural proportions remain unchanged. Source claims and measurement notes explain exactly which model, specimen, state or representative range is shown.
Dimensions
- Height
- 3.68 m
- Length
- 7 m
- Width
- 2.6 m
- Weight
- 20 t
Quick facts
- Height
- 3.7 m
- Length
- 7 m
- Width
- 2.6 m
- Weight
- 20,000 kg

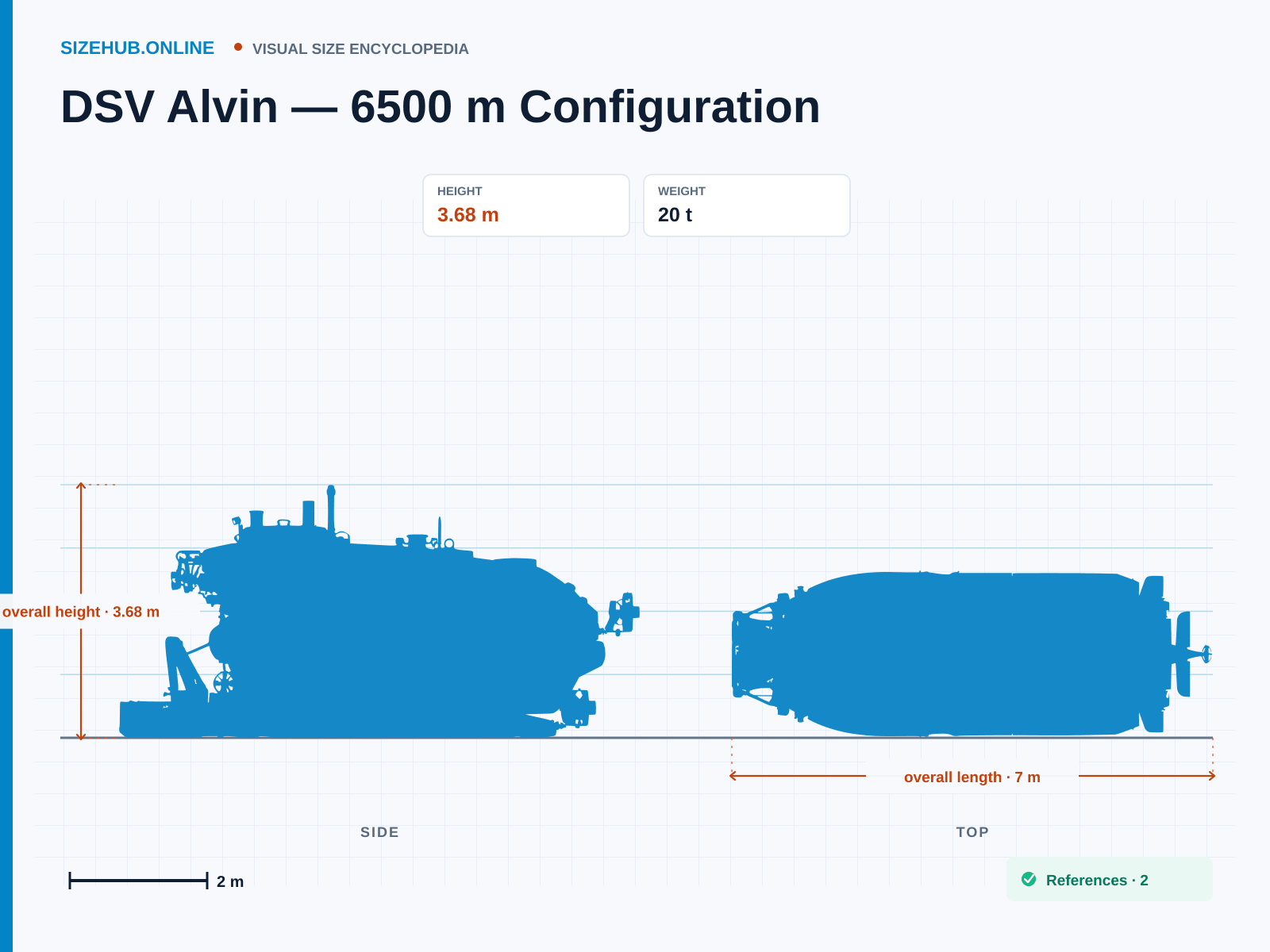

DSV Alvin — 6500 m Configuration · Size infographic
Related objects
Sources and measurement22 References
Dimensions were cross-checked against independent sources before publication.
Measurement basis
Dimensions follow the documented measurement basis and the reviewed side projection contract; descriptive axes are not substituted for pose-dependent image bounds.
