Case IH Patriot 4450

The Case IH Patriot 4450 is shown in its documented transport state with the 120-foot spray boom folded and secured. The selected configuration measures 9.169 m long, 3.835 m wide and 3.937 m high, with a listed weight of 15,295 kg.

Dimensions

Height
3.94 m
Length
9.17 m
Width
3.84 m
Weight
15.3 t

Quick facts

Tank capacity
6,057 L
Power
390/415 hp
Boom
120 ft
Weight
15,295 kg
Compare sizes

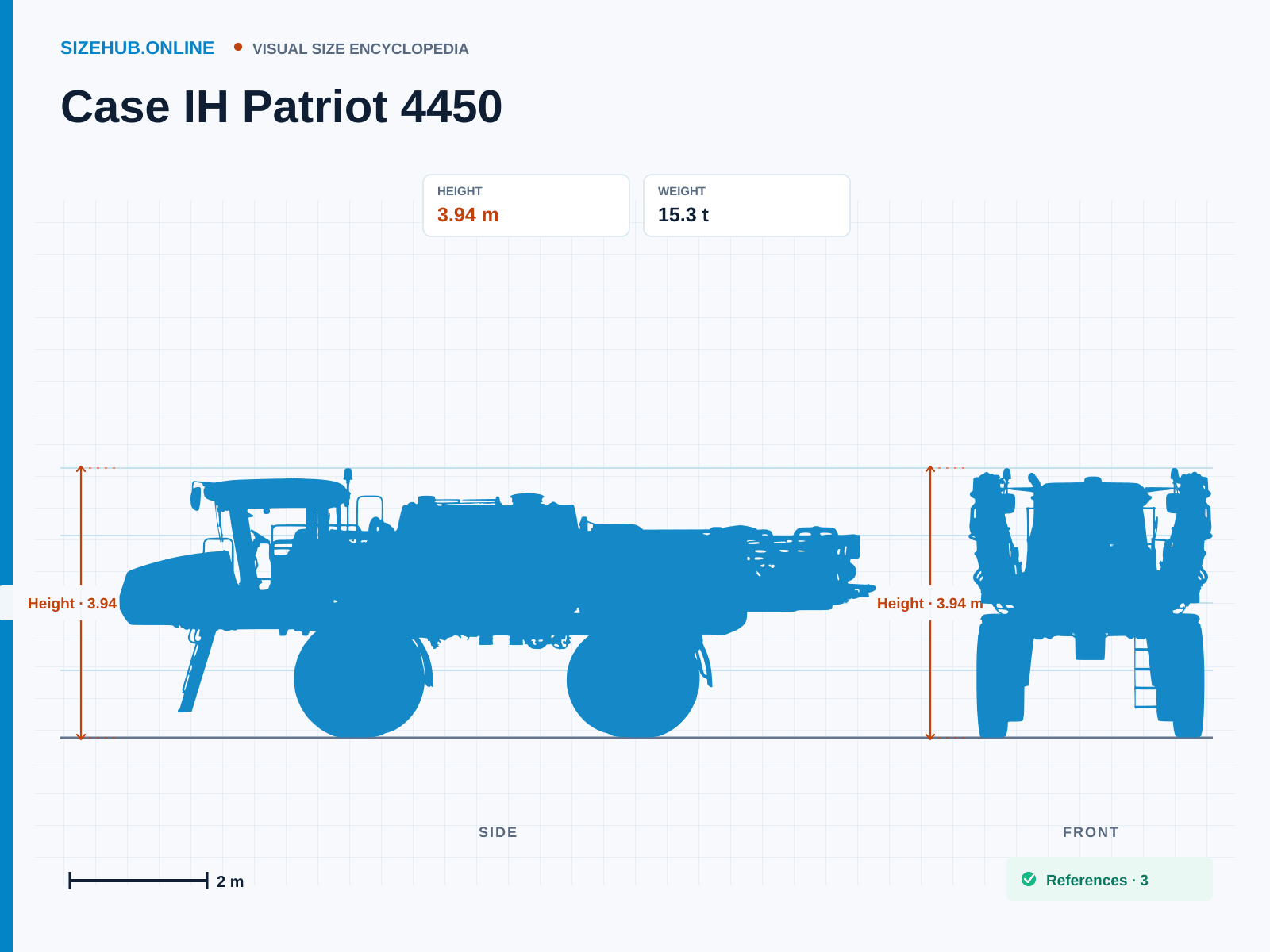

Case IH Patriot 4450 · Size infographic

Case IH Patriot 4450: Size infographic · Height 3.94 m · Length 9.17 m · Width 3.84 m
Case IH Patriot 4450: Size infographic · Height 3.94 m · Length 9.17 m · Width 3.84 m
