Boeing CH-47F Chinook Block II
Boeing CH-47F Chinook Block II is presented in a strict left-facing orthographic side profile for a clear visual size comparison. The verified reference uses a height of 5.7 m, length of 30.1 m, width of 18.3 m and weight of 24,494 kg. The artwork is uniformly scaled from the documented measurement contract, while its natural or architectural proportions remain unchanged. Source claims and measurement notes explain exactly which model, specimen, state or representative range is shown.
Dimensions
- Height
- 5.7 m
- Length
- 30.1 m
- Width
- 18.3 m
- Weight
- 24.49 t
Quick facts
- Height
- 5.7 m
- Length
- 30.1 m
- Width
- 18.3 m
- Weight
- 24,494 kg

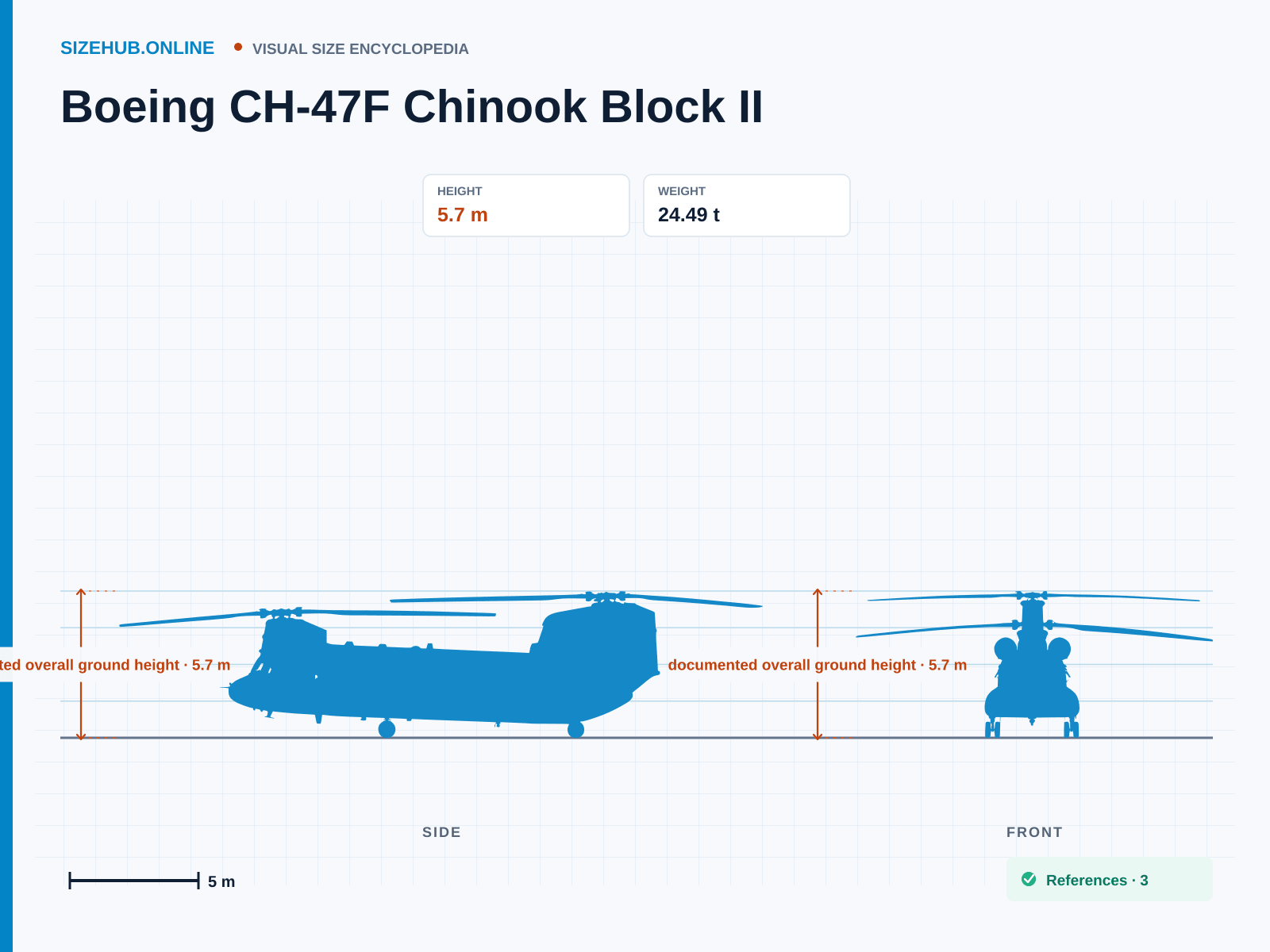

Boeing CH-47F Chinook Block II · Size infographic
Related objects
Sources and measurement33 References
Dimensions were cross-checked against independent sources before publication.
Measurement basis
Dimensions follow the documented measurement basis and the reviewed side projection contract; descriptive axes are not substituted for pose-dependent image bounds.
