Exact projection proportions
Both visible axes passed the 5% tolerance check.
Boeing AH-64E Apache Guardian
The Boeing AH-64E Apache Guardian is a two-seat attack helicopter with a tandem cockpit, four-blade main rotor and short stub wings. It is shown in a clean parked configuration: the integral M230 gun remains, while missiles, auxiliary tanks and the removable mast-mounted Longbow radar are excluded. The rotors are stopped and fully unfolded.
Dimensions
- Height
- 4.7 m
- Length
- 14.7 m
- Width
- 14.6 m
Quick facts
- Length
- 14.7 m
- Height
- 4.7 m
- Main rotor diameter
- 14.6 m
- Maximum operating weight
- 10,433 kg
- Crew
- 2

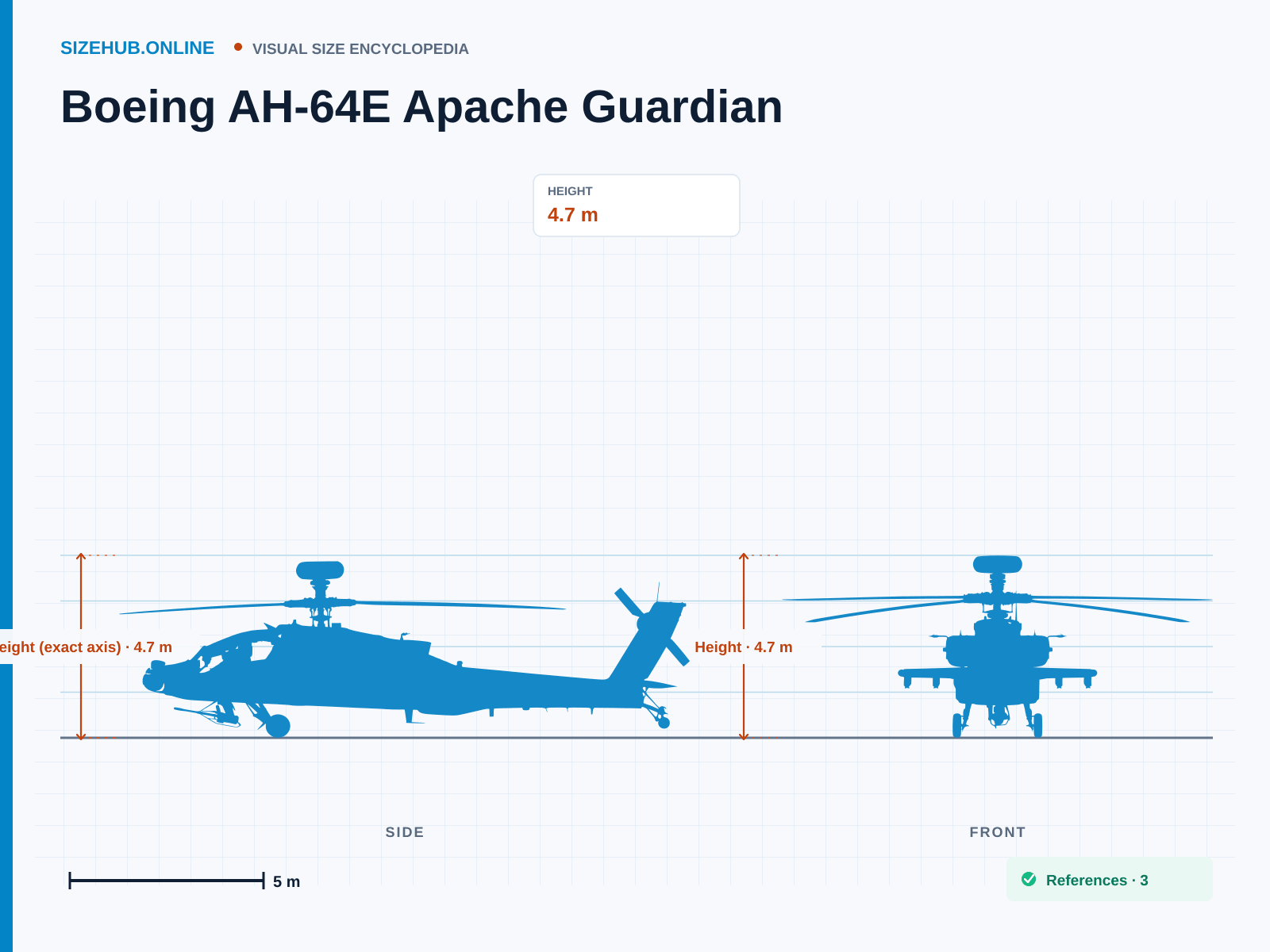

Boeing AH-64E Apache Guardian · Size infographic
Related objects
Sources and measurement33 References
Dimensions were cross-checked against independent sources before publication.
Measurement basis
The side contour follows 14.7 m length by 4.7 m height; the front contour follows 14.6 m rotor diameter by 4.7 m height. Optional mast assemblies and external stores are excluded.
