10.53 m
3.1 m
Scale anchored to a reviewed measurement
Uniformly scale the image by the documented 10.53 m fuselage segment; preserve natural rotor overhang and full intrinsic proportions.
Bell 505 Jet Ranger X
The Bell 505 Jet Ranger X is a light five-seat turbine helicopter with a two-blade main rotor and skid landing gear. It is shown in base standard configuration with doors closed, rotors stopped and no mission equipment. The 10.53 m value is fuselage length, while the front scale uses the 11.28 m main-rotor diameter.
Dimensions
- Height
- 3.1 m
- Length
- 10.53 m
- Width
- 11.28 m
- Weight
- 989 kg
Quick facts
- Fuselage length
- 10.53 m
- Height
- 3.10 m
- Main rotor diameter
- 11.28 m
- Base empty weight
- 989 kg
- Seats
- 5

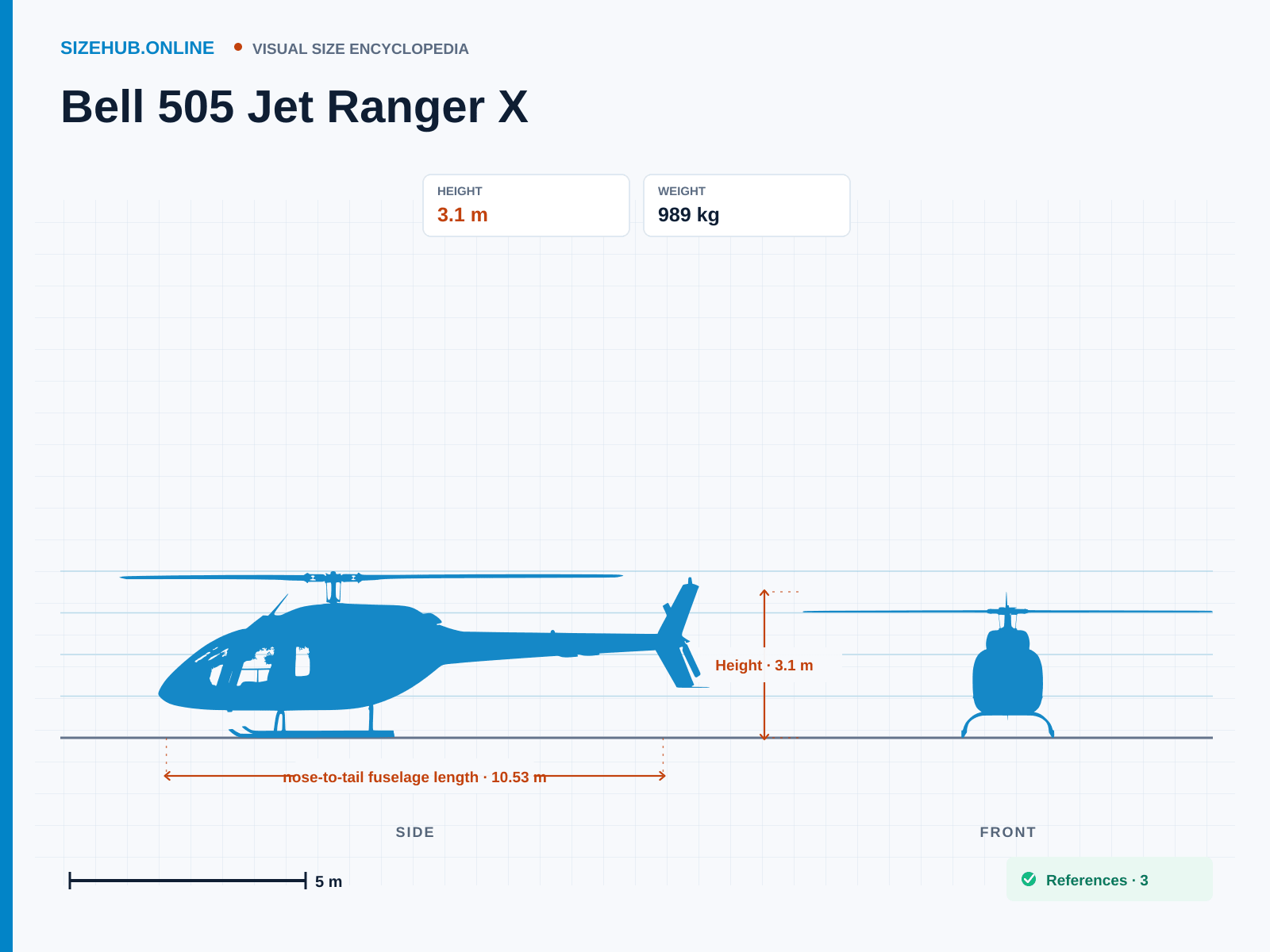

Bell 505 Jet Ranger X · Size infographic
Related objects
Sources and measurement33 References
Dimensions were cross-checked against independent sources before publication.
Measurement basis
The side view is uniformly anchored to the 10.53 m nose-to-tail fuselage segment; the front contour uses the exact 11.28 m rotor diameter by 3.10 m height.
