4.92 m

Airbus H160-B

4.92 m

Airbus H160-B — front

front

Exact projection proportions

Both visible axes passed the 5% tolerance check.

Airbus H160-B

The Airbus H160-B is a medium twin-engine civil helicopter with a five-blade main rotor, retractable wheel landing gear and a canted Fenestron. It is represented parked in clean civil configuration without a hoist, floats, cameras or other mission kits. The side view uses the official 15.67 m D-value and the front view uses the 13.40 m rotor diameter.

Dimensions

Height: 4.92 m
Length: 15.67 m
Width: 13.4 m

Quick facts

D-value: 15.67 m
Height: 4.92 m
Main rotor diameter: 13.40 m
MTOW: 6,050 kg
Passengers: up to 12

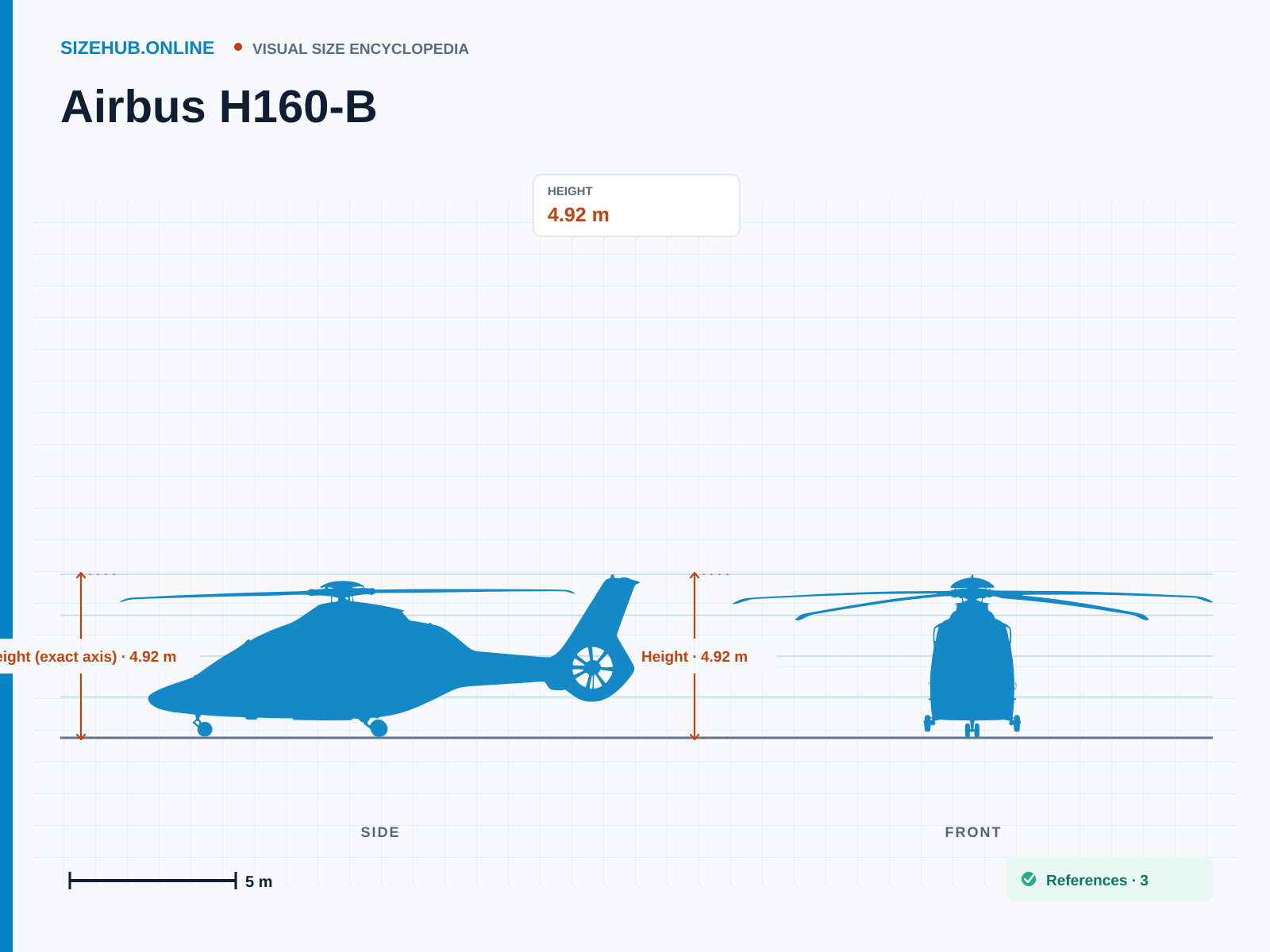

Airbus H160-B · Size infographic

Airbus H160-B: Size infographic · Height 4.92 m · Length 15.67 m · Width 13.4 m

Related objects

AEC Routemaster RM (1958–1965)

↕ 4.38 m↔ 8.38 m

Airbus A350-1000

↕ 17.08 m↔ 73.78 m

Airbus A380-800

↕ 24.1 m↔ 72.7 m

Airbus A400M Atlas

↕ 14.7 m↔ 45.1 m

Sources and measurementDimensions were cross-checked against independent sources before publication.33 References

Dimensions were cross-checked against independent sources before publication.

Measurement basis

The side contour follows the 15.67 m D-value by 4.92 m height; the front contour follows 13.40 m rotor diameter by 4.92 m height.
